ICEMA 塩水溶け氷ブロックを作る機械

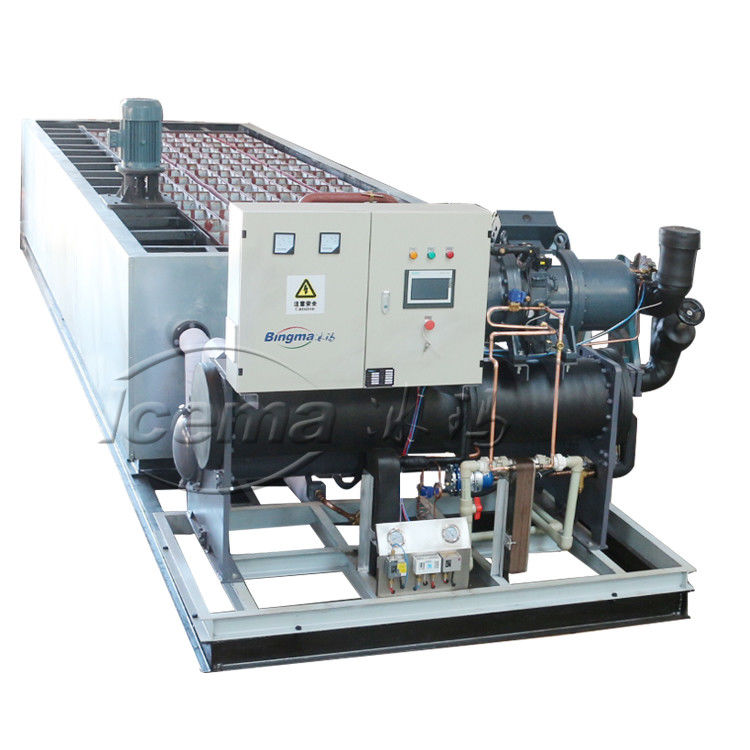

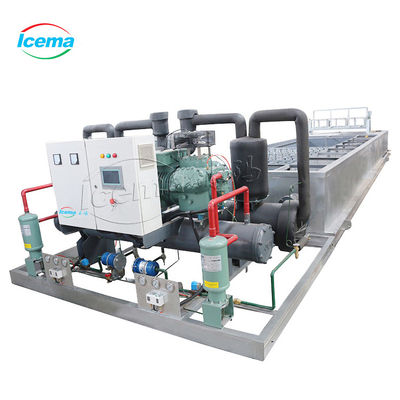

      Brine refrigeration block ice machine is used for traditional way of seawater tank of ice, the configuration of modern automation control, greatly improving the efficiency of making ice and reduce the labor intensity of the workers.

Product Description

       ICEMA utilizes both direct refrigeration and technology and brine refrigeration technology to meet your different requirements.Bingma can also customize the size of the block ice to meet your needs and requirements.

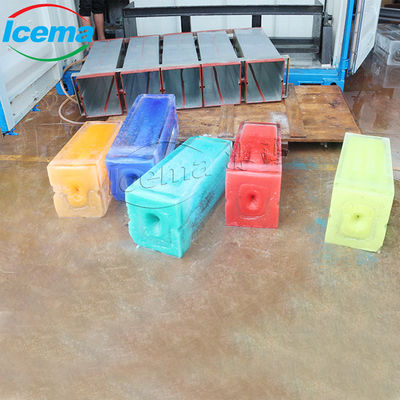

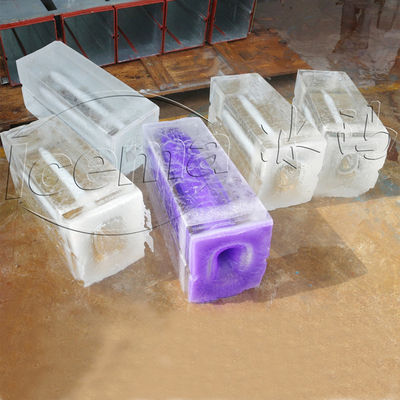

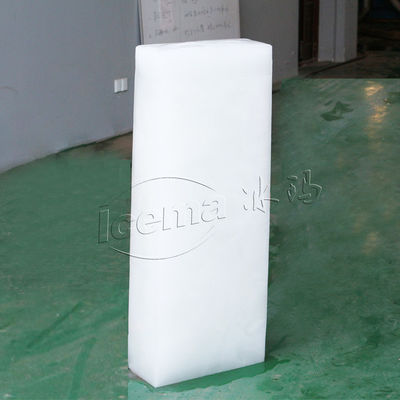

       Block ice has a large dimension but has small contact area so it does not melt easily.It is usually cut into different pieces for different uses in ice sculpture,sea shipping and fish vessels.The small pieces of block ice can be used for various purposes.There will be a little loss because the ice will thaw party when crushed.

       First fully the ice bucket with water,press the button and start the refrigeration system.The agitator makes the water flow cyclically which have a heat transfer with the refrigerant inside the Ti evaporative coils and then the temperature is lowered.

Then the low temperature brine water has a heat transfer with the water inside the ice bucket which will be lowered to 0℃ below after a certain ice making time,the water in the ice bucket all becomes ice when the ice thawing system is beginning to run.The crane will hoist a row of buckets down into the ice thaw tank full of running warm water.So the bucket temperature will be rising when the ice surface thaws and gets separated.

1. The ice occasions in food industry;

2. The fruits and vegetables preservation transportaion industry;

3. Ice sculptures,ice exhibition;

4. The meat processing plant,live poultry slaughter plant,seafood processing;

5. Mine cooling,plant cooling;

6. The chemical industry.

Product Features:

1. The traditional craft of brine heat ice, ice machine running stable, low failure rate;

2. According to customer requirements, design suitable block ice machine for the customer request;

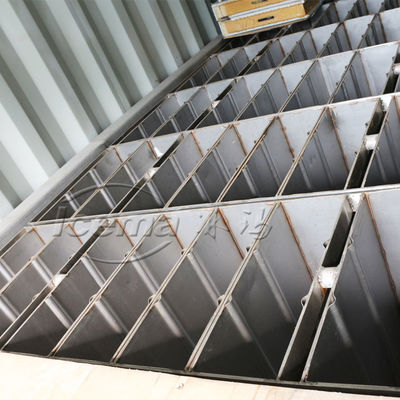

3. The ice mold can be made of galvanized sheet or stainless steel;

4. The machine process of ice is the full automatic control; don't need a professional people with certificates;

5. Ice size can be customization;

6.Sanitation & Safety: Fully adopted SUS304 stainless steel to build this machine; special water flow design, automatic cleaning, sanitary, safe, and fulfills the demand of QS test standard.

7.Low energy consumption: 85~90 kWh/ton in summer, 70~85 kWh/ton if the ambient temperature is lower than 23℃.

8.Large capacity: Single machine’s daily capacity can be 1 ton to 20 tons and production is stable, in hot summer we can still reach 90~95% of the rated capacity. If the ambient temperature is lower than 20℃, it can reach 100~130%.

9.Stable performance: Ice is crystal clear and hard, well-shaped and beautiful, can be stored for a long time.

10.Components brand: Compressor is German Bitzer or Italian Frascold, electric devices are Siemens or LG.

11.Ice cube size: 22*22*22mm / 29*29*22mm / 38*38*22mm or customized.

12.Automatic operation: PLC controlled, be able to automatically adjust the thickness of ice, forming ice, harvesting ice, and add water.

13.Fully automatic and need no human adjustment.

14.High standards of evaporator, durability, safety and reliability;
15.Directly formed at low temperature, high efficiency;
16.Excellent design, stability and low breakdown rate;
17.Environment-friendly refrigerant, high efficiency and energy saving;
18.Full series of products for all applications;
19.Full-automatic control;
20.Certificate CE(PED)/ASME;
21.With stainless steel or plastic storage, full series for selection;
22.Nice appearance with thorough to the last detail;
